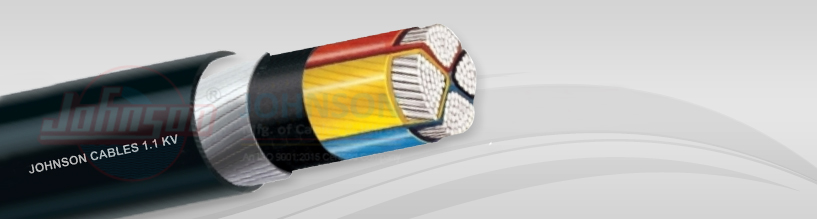

4 core Aluminium / Copper

SIZE	NOMINAL INSULATION THICKNESS	MINIMUM INNER SHEATH THICKNESS	MINIMUM OUTER SHEATH THICKNESS	APPROX. OVERALL DIAOF CABLE ±2MM	APPROX. WEIGHT OF CABLE		MAX . CONDUCTOR DC RESISTANCE at 20 ° ; C		NOMINAL CURRENT RATING ALUMINIUM CONDUCTOR		NOMINAL CURRENT RATING COPPER CONDUCTOR
SIZE	NOMINAL INSULATION THICKNESS	MINIMUM INNER SHEATH THICKNESS	MINIMUM OUTER SHEATH THICKNESS	APPROX. OVERALL DIAOF CABLE ±2MM	A2XY	2XY	ALUMINIUM	COPPER	GROUND	AIR	GROUND	AIR
mm ²	mm	mm	mm	mm	Kg/Km		Ohm/Km		AMPS
4C X 4	0.70	0.30	1.80	14.00	230	350	7.410	4.61	35	31	44	39
4C X 6	0.70	0.30	1.80	15.00	290	440	4.610	3.08	44	41	55	50
4C X 10	0.70	0.30	1.80	17.00	370	640	3.080	1.83	58	53	74	68
4C X 16	0.70	0.30	1.80	19.00	460	800	1.910	1.15	75	70	95	86
4C X 25	0.90	0.30	2.00	23.00	600	1200	1.200	0.727	96	93	121	119
4C X 35	0.90	0.30	2.00	25.50	750	1600	0.868	0.524	116	116	146	147
4C X 50	1.00	0.30	2.00	29.50	980	2150	0.641	0.387	140	140	171	178
4C X 70	1.10	0.40	2.20	33.50	1300	2900	0.443	0.268	171	175	211	225
4C X 95	1.10	0.40	2.20	37.50	1700	3900	0.320	0.193	201	217	251	278
4C X 120	1 .20	0 .50	2.40	41.50	2150	4850	0.253	0.153	226	250	286	318
4C X 150	1.40	0.50	2.60	46.00	2600	6000	0.206	0.124	256	285	316	364
4C X 185	1.60	0.50	2.80	50.00	3200	7450	0.164	0.0991	286	330	356	421
4C X 240	1.70	0.60	3.00	56.00	4000	9650	0.125	0.0754	327	393	411	500
4C X 300	1.80	0.70	3.20	62.00	5000	12050	0.100	0.0601	371	452	461	572

SIZE	NOMINAL INSULATION THICKNESS	MINIMUM INNER SHEATH THICKNESS	NOMINAL ARMOUR STRIP	MINIMUM OUTER SHEATH THICKNESS	APPROX. OVERALL DIAOF CABLE ±2MM	APPROX. WEIGHT OF CABLE		MAX. CONDUCTOR DC RESISTANCE at 20° C		NOMINAL CURRENT RATING ALUMINIUM CONDUCTOR		NOMINAL CURRENT RATING COPPER CONDUCTOR
SIZE	NOMINAL INSULATION THICKNESS	MINIMUM INNER SHEATH THICKNESS	NOMINAL ARMOUR STRIP	MINIMUM OUTER SHEATH THICKNESS	APPROX. OVERALL DIAOF CABLE ±2MM	A2XFY	2XFY	ALUMINIUM	COPPER	GROUND	AIR	GROUND	AIR
mm²	mm	mm	mm	mm	mm	Kg/Km		Ohm/Km		AMPS
4C X 10	0.70	0.30	4X 0.80	1.40	18.50	550	780	3.080	1.830	58	53	74	68
4C X 16	0 .70	0.30	4X 0.80	1.40	20.00	720	1050	1.910	1.150	75	70	95	86
4C X 25	0.90	0.30	4X 0.80	1.40	23.50	950	1550	1.200	0.727	96	93	121	119
4C X 35	0.90	0.30	4X 0.80	1.40	25.50	1050	1950	0.868	0.524	116	116	146	147
4C X 50	1.00	0.30	4X 0.80	1.56	29.50	1350	2550	0.641	0.387	140	140	171	178
4C X 70	1.10	0.40	4X 0.80	1.56	33.50	1700	3350	0.443	0.268	171	175	211	225
4C X 95	1.10	0.40	4X 0.80	1.56	37.50	2100	4450	0.320	0.193	201	217	251	278
4C X 120	1 . 20	0.50	4X 0.80	1.72	41.50	2600	5500	0.253	0.153	226	250	286	318
4C X 150	1 . 40	0.50	4X 0.80	1.88	46.00	3000	6700	0.206	0.124	256	285	316	364
4C X 185	1 . 60	0 . 50	4X 0.80	2.04	51.00	3700	8200	0.164	0.0991	286	330	356	421
4C X 240	1 .70	0.60	4X 0.80	2.20	57.00	4700	10300	0.125	0.0754	327	393	411	500
4C X 300	1.80	0.70	4X 0.80	2.36	63.00	5660	12800	0.100	0.0601	371	452	461	572

SIZE	NOMINAL INSULATION THICKNESS	MINIMUM INNER SHEATH THICKNESS	NOMINAL ARMOUR WIRE	MINIMUM OUTER SHEATH THICKNESS	APPROX. OVERALL DIA OF CABLE ±2MM	APPROX. WEIGHT OF CABLE		MAX. CONDUCTOR DC RESISTANCE at 20° C		NOMINAL CURRENT RATING ALUMINIUM CONDUCTOR		NOMINAL CURRENT RATING COPPER CONDUCTOR
SIZE	NOMINAL INSULATION THICKNESS	MINIMUM INNER SHEATH THICKNESS	NOMINAL ARMOUR WIRE	MINIMUM OUTER SHEATH THICKNESS	APPROX. OVERALL DIA OF CABLE ±2MM	A2XWY	2XWY	ALUMINIUM	COPPER	GROUND	AIR	GROUND	AIR
mm²	mm	mm	mm	mm	mm	Kg/Km		Ohm/Km		AMPS
4C X 4	0.70	0.30	1.40	1.24	15.50	510	590	7.410	4.61	35	31	44	39
4C X 6	0.70	0.30	1.40	1.24	16.50	590	730	4.610	3.08	44	41	55	50

- THE ABOVE DATA IS APPROXIMATE & SUBJECT TO MANUFACTURING TOLERANCE, 2. DELIVERY LENGTH TOLERANCE +/- 5%.
