Multi-Core 2.5 sq.mm Control Cable

HOME LT POWER CABLES MULTI-CORE 2.5 sq.mm CONTROL CABLE
Multi-Core 2.5 sq.mm Control Cable
1.1 KV Grade

Multi-Core 2.5 sq.mm Control Cable

2.5 Sq. mm Copper Conductor XLPE Insulated Armoured Control Cables (Ref Spec: IS 7098 Part-1)

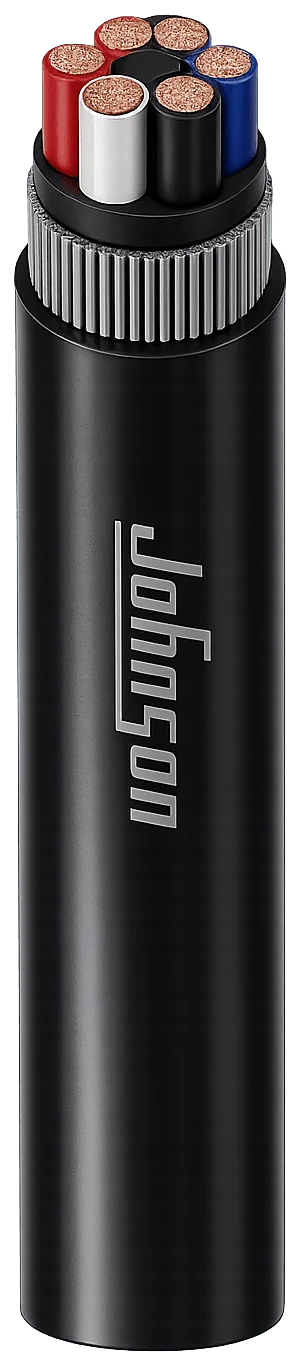

Cable Structure
Stranded Conductor
Core
XLPE Insulation
Layer 1
PVC Inner Sheath
Layer 2
Armouring
Layer 3
PVC Outer Sheath
Outer

2.5 SQ MM COPPER CONDUCTOR XLPE INSULATED ARMOURED CONTROL CABLES
Ref Specification: IS 7098 Part-1 | Cable Code: 2XFY

SIZE
(mm²)		 NOMINAL INSULATION THICKNESS
(mm)		 MINIMUM INNER SHEATH THICKNESS
(mm)		 NOMINAL ARMOUR STRIP
(mm)		 MINIMUM OUTER SHEATH THICKNESS
(mm)		 APPROX. OVERALL DIA OF CABLE ±2 MM
(mm)		 APPROX. WEIGHT OF CABLE
(Kg/Km)		 MAX. DC CONDUCTOR RESISTANCE AT 20° C (COPPER)
(Ω/km)		 NOMINAL CURRENT RATING COPPER CONDUCTOR (AMPS)
GROUND AIR
10 C X 2.5 0.70 0.30 4 x 0.8 1.40 19.30 640 7.41 23 20
12 C X 2.5 0.70 0.30 4 x 0.8 1.40 19.80 705 7.41 20 18
14 C X 2.5 0.70 0.30 4 x 0.8 1.40 20.80 790 7.41 20 18
16 C X 2.5 0.70 0.30 4 x 0.8 1.40 22.00 880 7.41 18 16
19 C X 2.5 0.70 0.30 4 x 0.8 1.40 23.20 1000 7.41 18 16
21 C X 2.5 0.70 0.30 4 x 0.8 1.40 24.60 1095 7.41 16 14
24 C X 2.5 0.70 0.30 4 x 0.8 1.40 27.10 1250 7.41 16 14
27 C X 2.5 0.70 0.30 4 x 0.8 1.40 28.00 1370 7.41 14 13

2.5 SQ MM COPPER CONDUCTOR XLPE INSULATED ARMOURED CONTROL CABLES
Ref Specification: IS 7098 Part-1 | Cable Code: 2XWY

NUMBER OF CORES NOMINAL INSULATION THICKNESS
(mm)		 NOMINAL ARMOUR WIRE
(mm)		 MINIMUM INNER SHEATH THICKNESS
(mm)		 MINIMUM OUTER SHEATH THICKNESS
(mm)		 OVERALL DIAMETER
(mm)		 APPROX. WEIGHT OF CABLE
(Kg/Km)		 MAX. DC CONDUCTOR RESISTANCE AT 20° C (COPPER)
(Ω/km)		 NOMINAL CURRENT RATING COPPER CONDUCTOR (AMPS)
GROUND AIR
2C X 2.5 0.70 1.40 0.30 1.24 12.80 330 7.41 41 36
3C X 2.5 0.70 1.40 0.30 1.24 13.40 365 7.41 34 30
4C X 2.5 0.70 1.40 0.30 1.24 14.30 425 7.41 34 30
5C X 2.5 0.70 1.40 0.30 1.24 15.40 495 7.41 34 30
6C X 2.5 0.70 1.40 0.30 1.24 16.50 565 7.41 31 27
7C X 2.5 0.70 1.40 0.30 1.24 16.50 580 7.41 27 23
8C X 2.5 0.70 1.40 0.30 1.24 18.50 640 7.41 23 20
9C X 2.5 0.70 1.40 0.30 1.24 19.70 700 7.41 23 20
10C X 2.5 0.70 1.60 0.30 1.40 20.80 800 7.41 23 20
12C X 2.5 0.70 1.60 0.30 1.40 21.60 880 7.41 20 18
14C X 2.5 0.70 1.60 0.30 1.40 22.40 965 7.41 20 18
16C X 2.5 0.70 1.60 0.30 1.40 23.60 1060 7.41 18 16
19C X 2.5 0.70 1.60 0.30 1.40 24.80 1190 7.41 18 16
21C X 2.5 0.70 1.60 0.30 1.40 26.20 1300 7.41 16 14
24C X 2.5 0.70 1.60 0.30 1.40 28.70 1475 7.41 16 14
27C X 2.5 0.70 1.60 0.30 1.56 29.60 1600 7.41 14 13

2.5 SQ MM COPPER CONDUCTOR XLPE INSULATED UNARMOURED CONTROL CABLES
Ref Specification: IS 7098 Part-1 | Cable Code: 2XY

NUMBER OF CORES NOMINAL INSULATION THICKNESS
(mm)		 MINIMUM INNER SHEATH THICKNESS
(mm)		 MINIMUM OUTER SHEATH THICKNESS
(mm)		 OVERALL DIAMETER
(mm)		 APPROX. WEIGHT OF CABLE
(Kg/Km)		 MAX. DC CONDUCTOR RESISTANCE AT 20° C (COPPER)
(Ω/km)		 NOMINAL CURRENT RATING COPPER CONDUCTOR (AMPS)
GROUND AIR
2C X 2.5 0.70 0.30 1.80 11.00 175 7.41 41 36
3C X 2.5 0.70 0.30 1.80 11.50 200 7.41 34 30
4C X 2.5 0.70 0.30 1.80 12.50 240 7.41 34 30
5C X 2.5 0.70 0.30 1.80 13.50 290 7.41 34 30
6C X 2.5 0.70 0.30 1.80 14.60 335 7.41 31 27
7C X 2.5 0.70 0.30 1.80 14.60 345 7.41 27 23
8C X 2.5 0.70 0.30 1.80 16.10 365 7.41 23 20
9C X 2.5 0.70 0.30 1.80 17.30 405 7.41 23 20
10C X 2.5 0.70 0.30 1.80 18.00 435 7.41 23 20
12C X 2.5 0.70 0.30 1.80 18.60 495 7.41 20 18
14C X 2.5 0.70 0.30 2.00 19.80 575 7.41 20 18
16C X 2.5 0.70 0.30 2.00 20.80 645 7.41 18 16
19C X 2.5 0.70 0.30 2.00 21.80 730 7.41 18 16
21C X 2.5 0.70 0.30 2.00 23.00 800 7.41 16 14
24C X 2.5 0.70 0.30 2.00 25.30 905 7.41 16 14
27C X 2.5 0.70 0.30 2.00 25.80 990 7.41 14 13
Important Technical Notes
  • Note: 1. The above data is approximate & subject to manufacturing tolerance, 2. Delivery length tolerance ± 5%.
