Explore Submersible Flat Cables Range
Specially engineered for continuous immersion under water in agricultural borewells, industrial pump sets, and residential water supply systems.

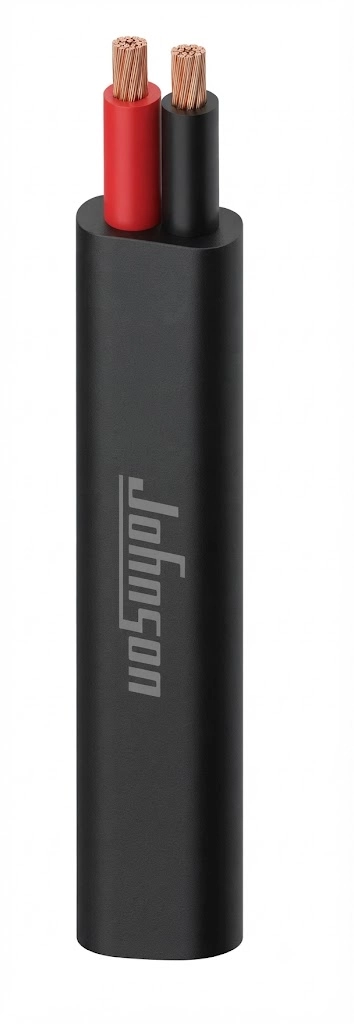

2 Core PVC Flat Cable
PVC Insulated & PVC sheathed flexible copper flat cable (up to 1100V). Class 2 & 5 bunched conductors.
3 Core PVC Flat Cable
PVC Insulated & PVC sheathed 3 core flat cable for submersible pump motors. High water and oil resistance.

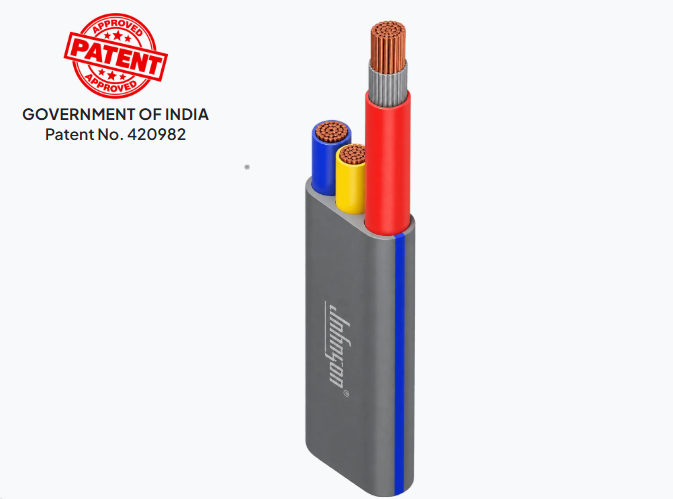

Johnson Gold 3 Core Flat Cable
Patented Johnson Wire Cable – Indian Patent No. 420982.

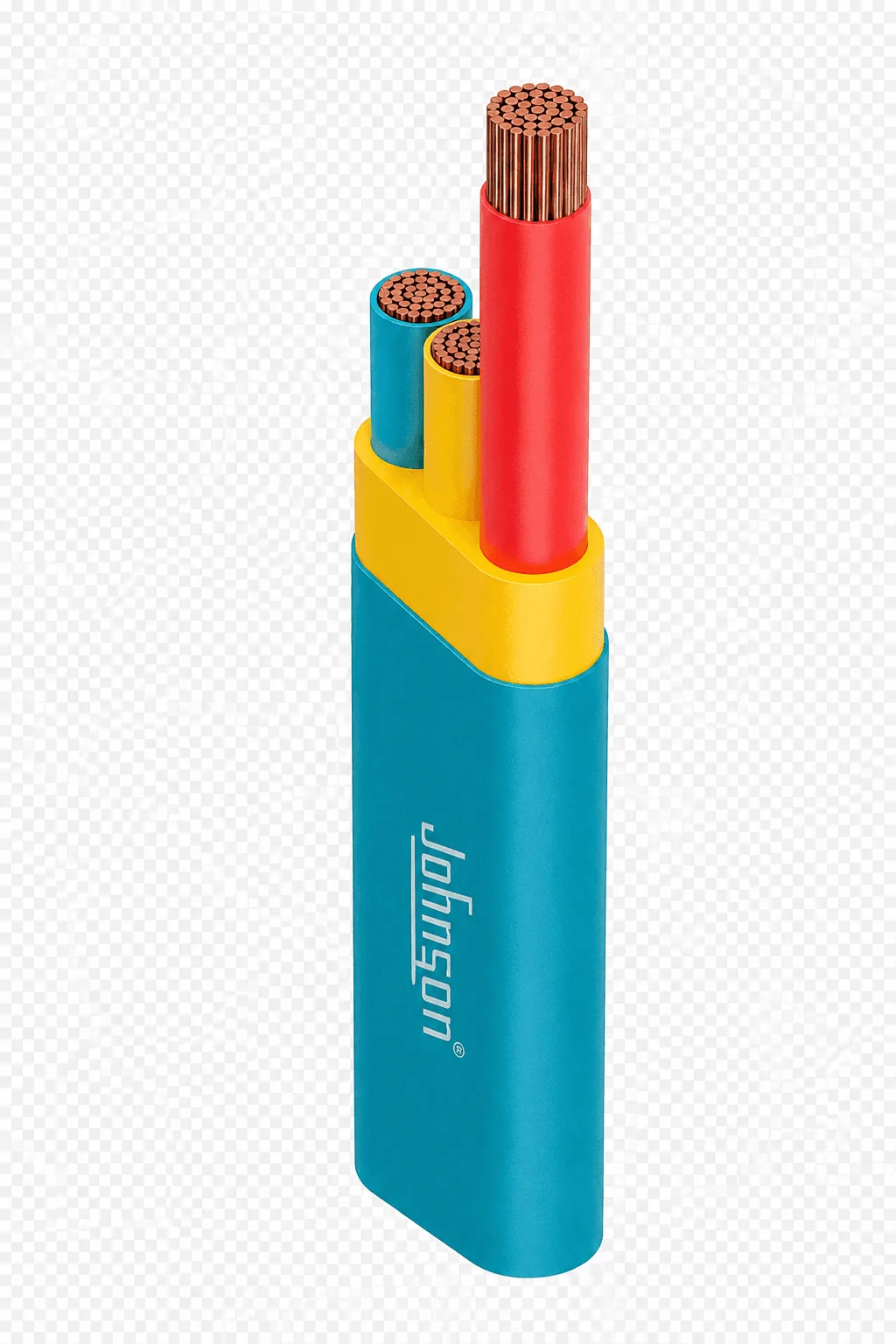

Johnson Premium 3 Core Flat Cable
XLPE Insulated and PVC double sheathed flexible copper cable with modified TPR sheath compound up to 1100V.
Quick Technical Specifications Matrix
Compare features, cross-sectional areas, and voltage ratings across Submersible Flat Cables
| Product Name | Conductor Type | Size Range | Voltage Grade | Max Temp | Action |
|---|---|---|---|---|---|
| 2 Core PVC Flat Cable | Class 2 & 5 Copper | 1.0 to 10.0 sq.mm | Up to 1100V | +70°C / +85°C | View Product Details |
| 3 Core PVC Flat Cable | Class 2 & 5 Copper | 1.0 to 70.0 sq.mm | Up to 1100V | +70°C / +85°C | View Product Details |
| Johnson Gold 3 Core (Double Insulated) | Class 2 & 5 Copper | 1.5 to 50.0 sq.mm | Up to 1100V | -20°C to +90°C | View Product Details |
| Johnson Premium 3 Core Flat Cable | Class 2 & 5 Copper | 1.5 to 50.0 sq.mm | Up to 1100V | -20°C to +90°C | View Product Details |
Why Choose Johnson Submersible Flat Cables?
Water & Moisture Impervious Sheath
Tough outer PVC sheath resists water, grease, oil, and harsh soil contaminants in continuous deep-well operations.
99.97% Pure Electrolytic Copper
Class 2 & 5 bunched copper conductors ensure minimum voltage drop and maximum pump motor efficiency.
IS 8130 Standards Certified
Built strictly to Indian & International standards for high dielectric strength and mechanical durability.
- VOLTAGE GRADE: UP TO 1100 VOLTS
- Sequential meter marking enables easy and accurate length identification on site.
- High abrasion and tear resistance sheathing guarantees reliable long-term underwater performance.
