Explore LT Power & Control Cables Range
Engineered for high current carrying capacity, underground power distribution, industrial plants, and utility substations. Available in Aluminium or Copper conductors with heavy-duty G.I. wire/strip armouring.
XLPE Armoured / Unarmoured Cable
1.1 KV XLPE Insulated Armoured & Unarmoured Heavy Duty Power Cables with Aluminium/Copper conductors as per IS 7098 Part-1.
1 Core 1.1 KV XLPE Cable
1 Core heavy-duty power cable with Aluminium or Copper conductor, XLPE insulation, and non-magnetic armouring.

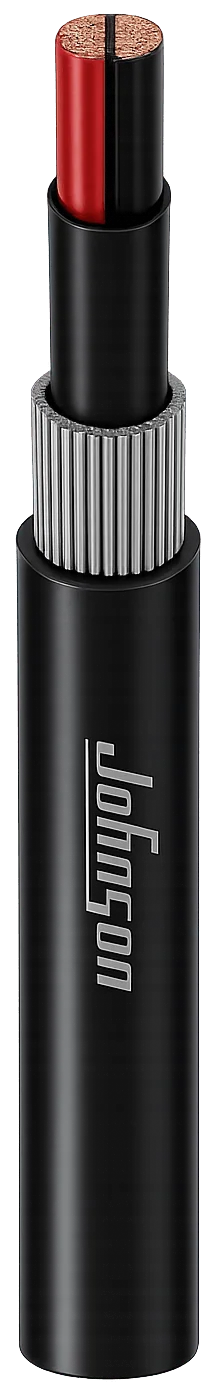

2 Core 1.1 KV XLPE Cable
2-Core XLPE insulated power cable available in Aluminium or Copper with G.I. wire/strip armouring.
3 Core 1.1 KV XLPE Cable
3-Core XLPE insulated power cable designed for 3-phase industrial power supply, featuring high current rating & thermal stability.

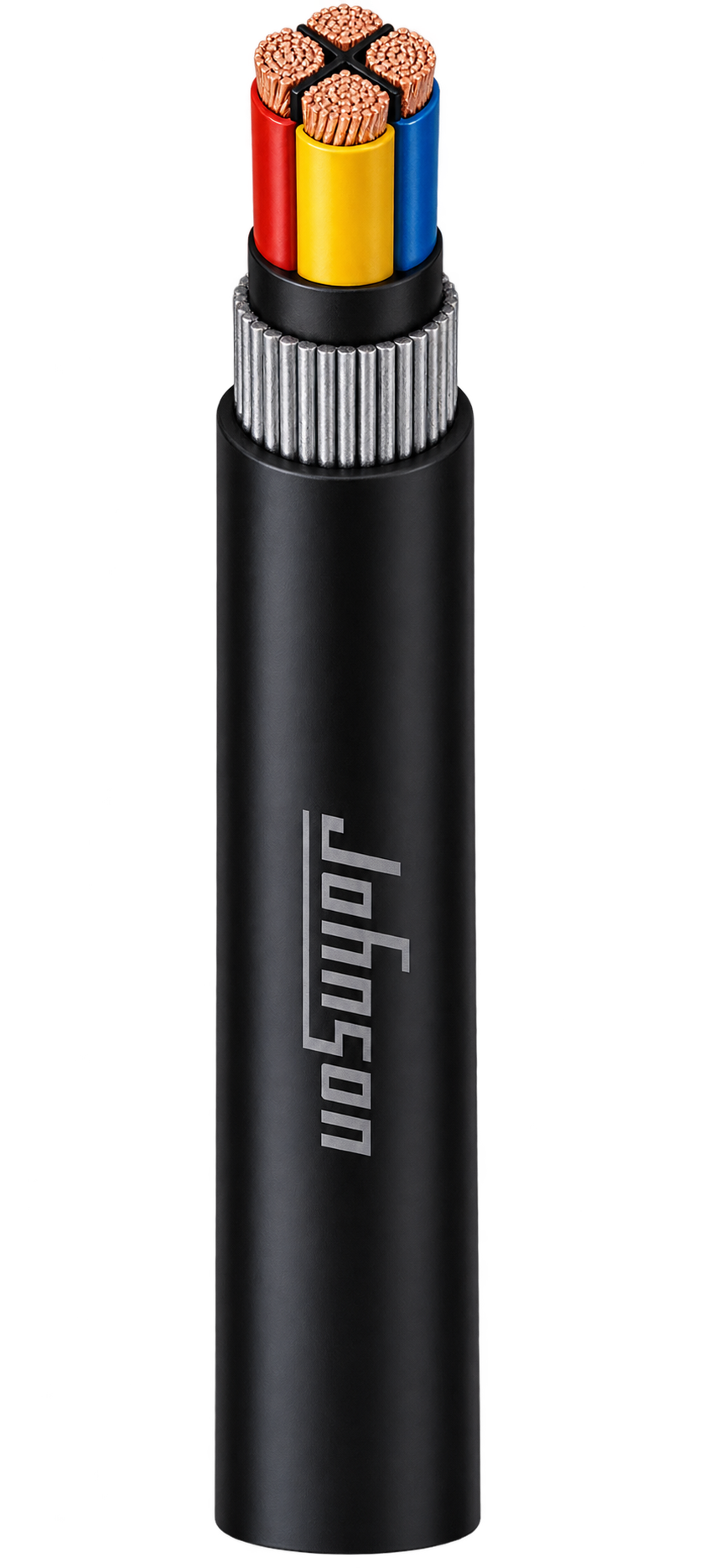

3.5 Core 1.1 KV XLPE Cable
3 Main phase conductors + 1 Half-size neutral conductor cable. Ideal for 3-phase 4-wire power distribution networks.

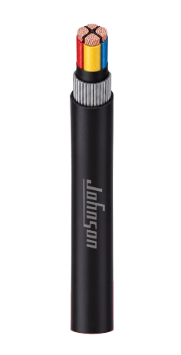

4 Core 1.1 KV XLPE Cable
4 equal-sized core power cable (R-Y-B-N) with G.I. round wire or flat strip armouring as per IS 7098 Part-1 standards.

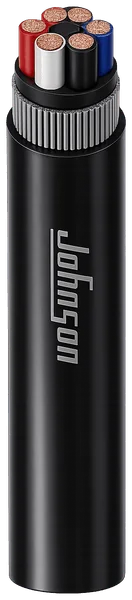

Multi-Core 1.5 sq.mm Control Cable
1.5 Sq. mm Copper Conductor XLPE Insulated Armoured Control Cables (IS 7098 Part-1) for signal transmission, industrial automation, and control panel wiring.
Multi-Core 2.5 sq.mm Control Cable
2.5 Sq. mm Copper Conductor XLPE Insulated Armoured Control Cables (IS 7098 Part-1) for heavy-duty industrial controls.
1 Core Power Cable (Unscreened)
Specialized 1.9/3.3 KV Single Core Unscreened HT power cables as per IS 7098 (Part-2) with XLPE insulation and aluminium armouring.

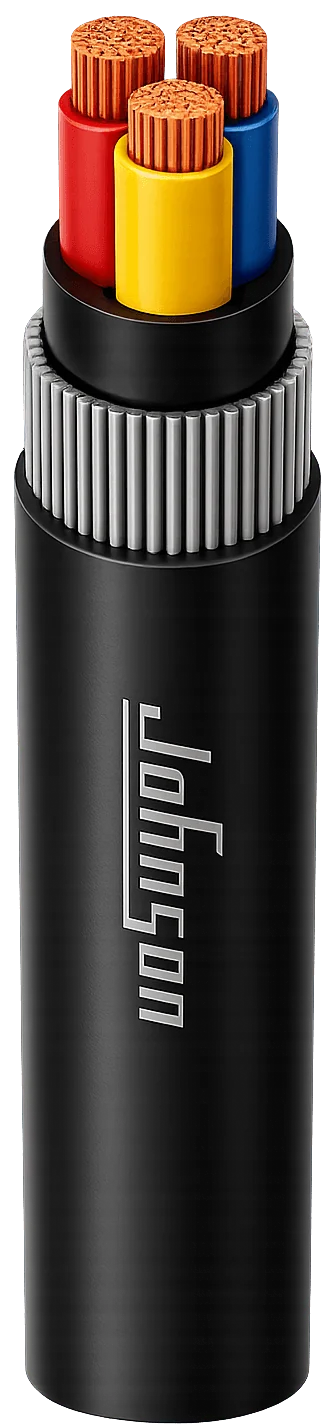

3 Core Power Cable (Unscreened)
Specialized 1.9/3.3 KV 3 Core Unscreened HT power cables as per IS 7098 (Part-2) with XLPE insulation and strip armouring.
Quick Technical Specifications Matrix
Compare core counts, voltage ratings, and insulation types across LT Power & Control Cables
| Product Name | Conductor Material | Insulation Type | Armouring Type | Voltage Rating | Action |
|---|---|---|---|---|---|
| 1 Core 1.1 KV Cable | Aluminium / Copper | XLPE Insulated | Non-Magnetic Aluminium Wire / Strip | 1.1 KV (1100V) | View Details |
| 2 Core 1.1 KV Cable | Aluminium / Copper | XLPE Insulated | Galvanized Steel Wire / Strip | 1.1 KV (1100V) | View Details |
| 3 Core 1.1 KV Cable | Aluminium / Copper | XLPE Insulated | Galvanized Steel Wire / Strip | 1.1 KV (1100V) | View Details |
| 3.5 Core 1.1 KV Cable | Aluminium / Copper | XLPE Insulated | Galvanized Steel Wire / Strip | 1.1 KV (1100V) | View Details |
| 4 Core 1.1 KV Cable | Aluminium / Copper | XLPE Insulated | Galvanized Steel Wire / Strip | 1.1 KV (1100V) | View Details |
| Multi-Core 1.5 sq.mm Control Cable | Electrolytic Copper | XLPE Insulated | Galvanized Steel Wire / Strip | 1.1 KV (1100V) | View Details |
| Multi-Core 2.5 sq.mm Control Cable | Electrolytic Copper | XLPE Insulated | Galvanized Steel Wire / Strip | 1.1 KV (1100V) | View Details |
| 1 Core Power Cable (Unscreened) 1.9/3.3 KV | Aluminium / Copper (Class 2 Stranded) | XLPE Insulated | Aluminium Wire / Formed Strip | 1.9 / 3.3 kV (E) | View Details |
| 3 Core Power Cable (Unscreened) 1.9/3.3 KV | Aluminium / Copper (Sector Shaped) | XLPE Insulated | Formed Strip Armouring | 1.9 / 3.3 kV (E) | View Details |
Why Choose Johnson LT Power & Control Cables?
Thermosetting XLPE Insulation
Operates continuously up to 90°C with short circuit withstand temperature up to 250°C for maximum power grid reliability.
Heavy Duty Mechanical Armouring
Single layer of Galvanized Iron (G.I.) round wire or flat strip armouring protects cables against heavy mechanical impact and soil stress.
Full Compliance with IS 7098 & IS 8130
Manufactured under strict ISO 9001 quality systems ensuring precise conductor resistance and flame retardant properties.
- MANUFACTURING STANDARD: IS 7098 (PART-1)
- Flame Retardant (FR) and Low Smoke Zero Halogen (LSZH) outer sheath compounds available on request.
- Sequential length markings printed along outer sheath for accurate installation and inventory management.
